Rode RodeLinkFM Filmaker Kit Wireless Lavalier Microphone
RODELINKFM
New

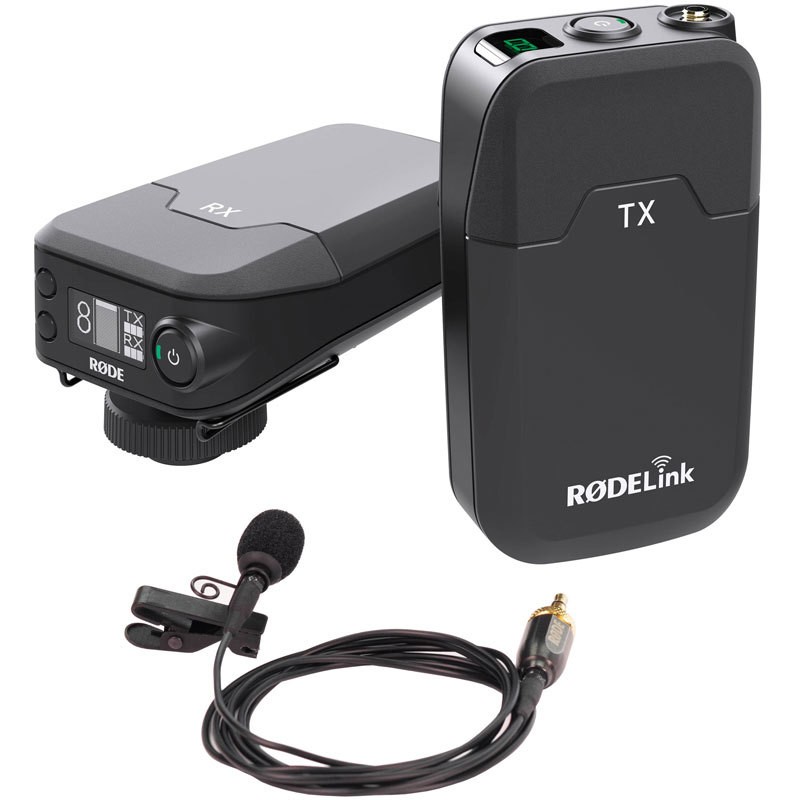

RØDELink Filmmaker Kit
Provides everything you need to start shooting video wirelessly, including a receiver, transmitter and broadcast-grade lavalier microphone.
- Series II, 2.4GHz digital transmission
- 128-bit encryption
- Up to 100 metres range*
- OLED display (on receiver)
- One button pairing
- Three level gain control
- AA battery or USB powered
- Includes RØDE's broadcast Lavalier microphone
RØDELink represents the next generation of digital wireless systems. Using a series II 2.4GHz digital transmission with 128-bit encryption, it is able to constantly monitor and hop between frequencies to maintain the strongest possible signal level at a range of up to 100 metres* (over 100 yards). The RØDELink Filmmaker Kit provides everything you need to start shooting video wirelessly, including a receiver, transmitter and broadcast-grade lavalier microphone. The receiver (RX-CAM) features an OLED display with information on level, battery status (receiver and transmitter), mute and channel selection. The unit can be mounted on a standard camera shoe mount, 3/8" thread or belt-clip, and for added versatility the shoe mount can be located in one of two positions. The lightweight transmitter (TX-BELT) can be fitted to a belt or clothing and features a locking thread to ensure the microphone connection is as secure as possible. RØDE’s omnidirectional Lavalier microphone is included in the kit to provide the highest possible audio reproduction quality.
* range estimations based on optimal environment
RØDELINK FILMMAKER KIT SPECIFICATIONS
| Transmission type | 2.4GHz Fixed Frequency Agile System |
| System dynamic range | 112dB |
| Range (distance) | Up To 100m |
| Frequency range | 35Hz - 22kHz |
| Maximum output level | 1v Rms (2.8v P-p) |
| Max input signal level | 1v Rms (2.8v P-p) |
| Max latency | 4ms |

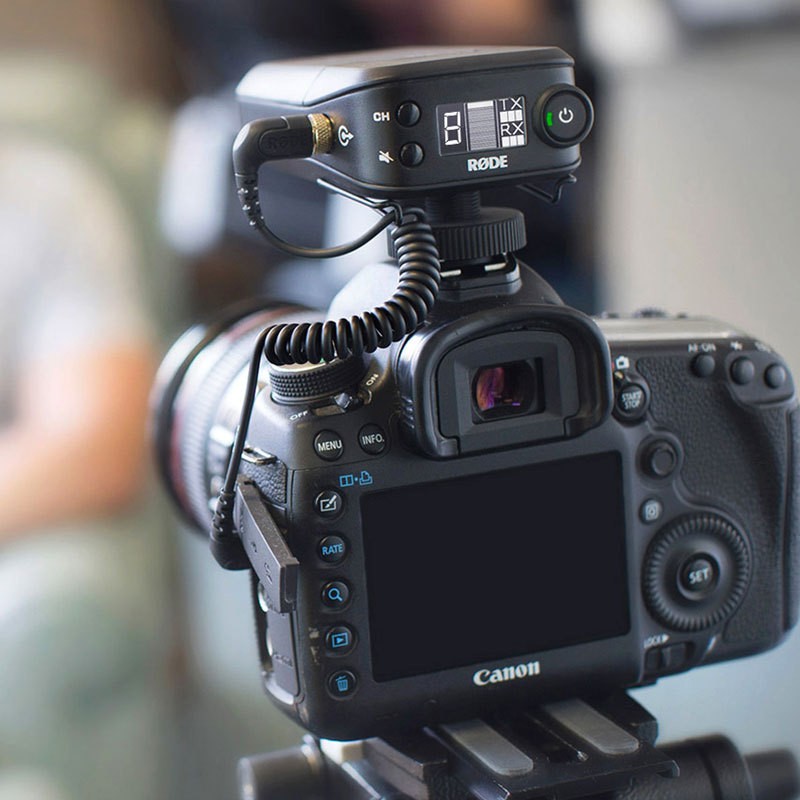

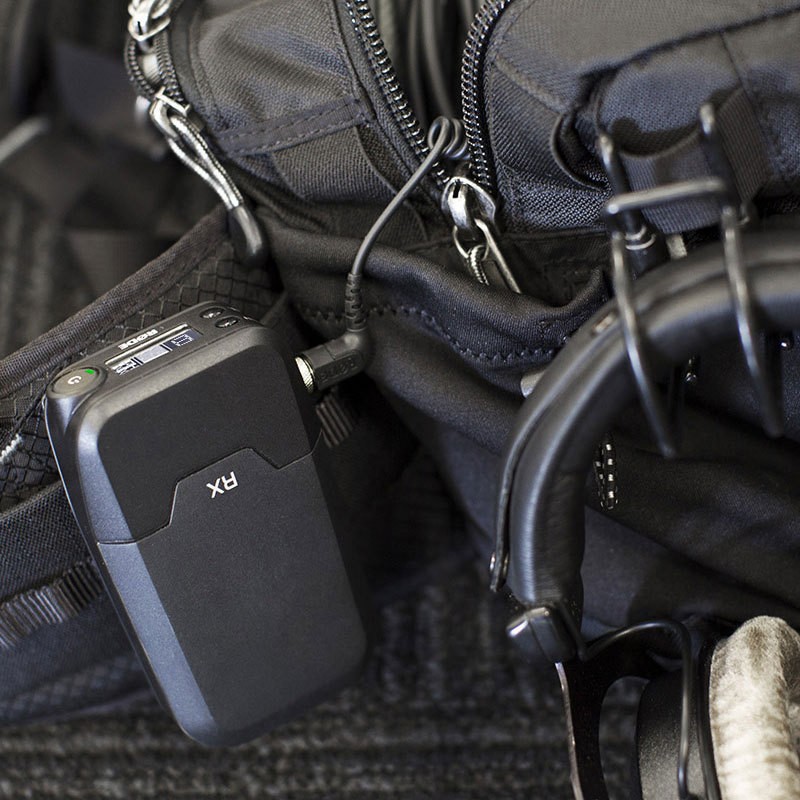

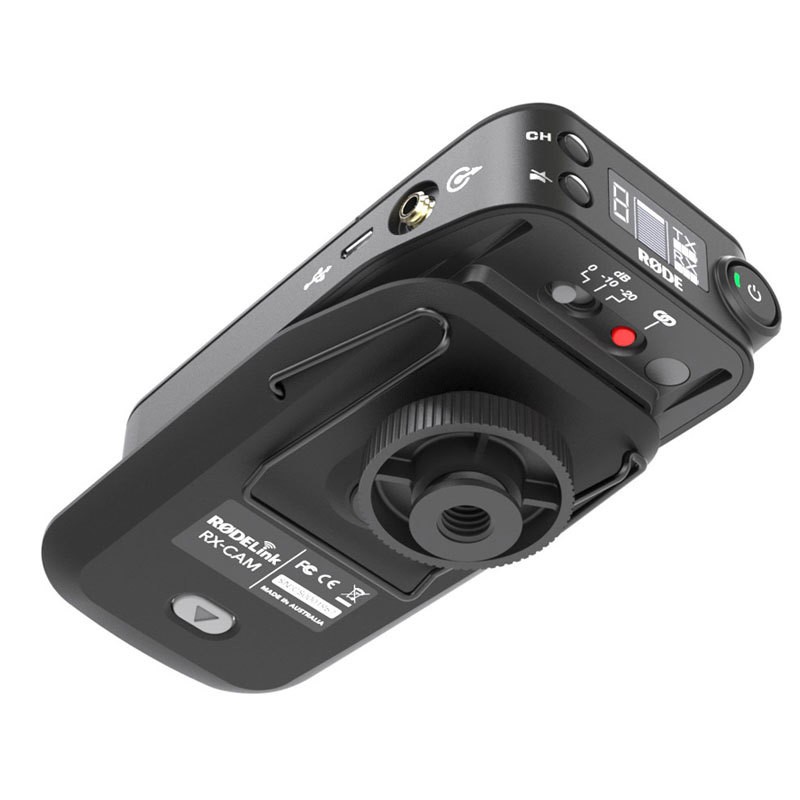

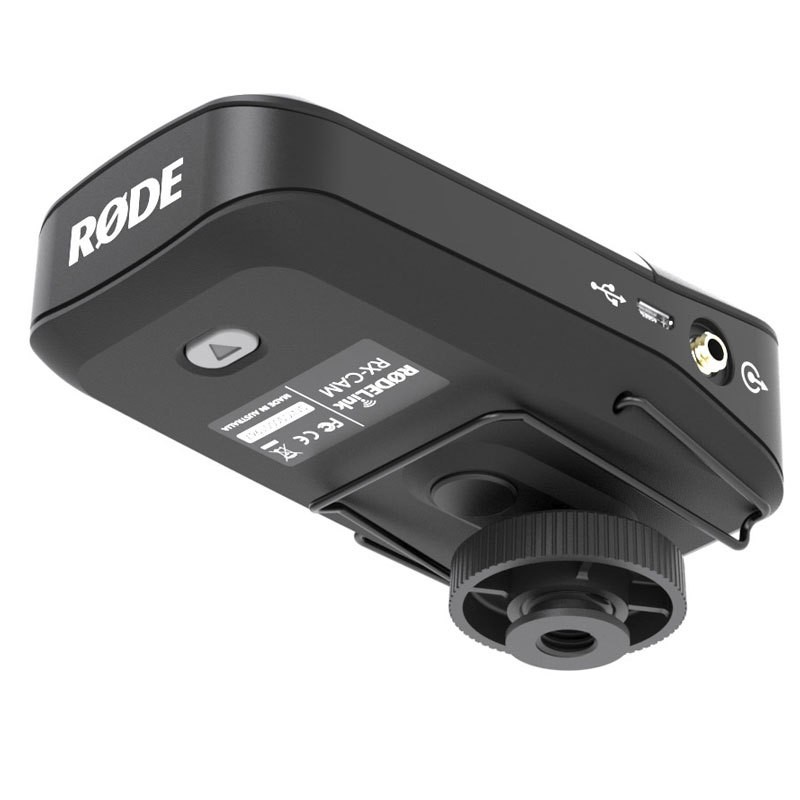

RECEIVER (RX-CAM)
| Power source | 2 X AA Battery Or MicroUSB |
| Antenna | Internal |
| Input connection | 3.5mm TRS Locking Jack Socket - Dual Mono |
| Input impedance | 300Ω |
| Dimensions | 111mm X 65mm X 52mm |
| Weight | 190gm |

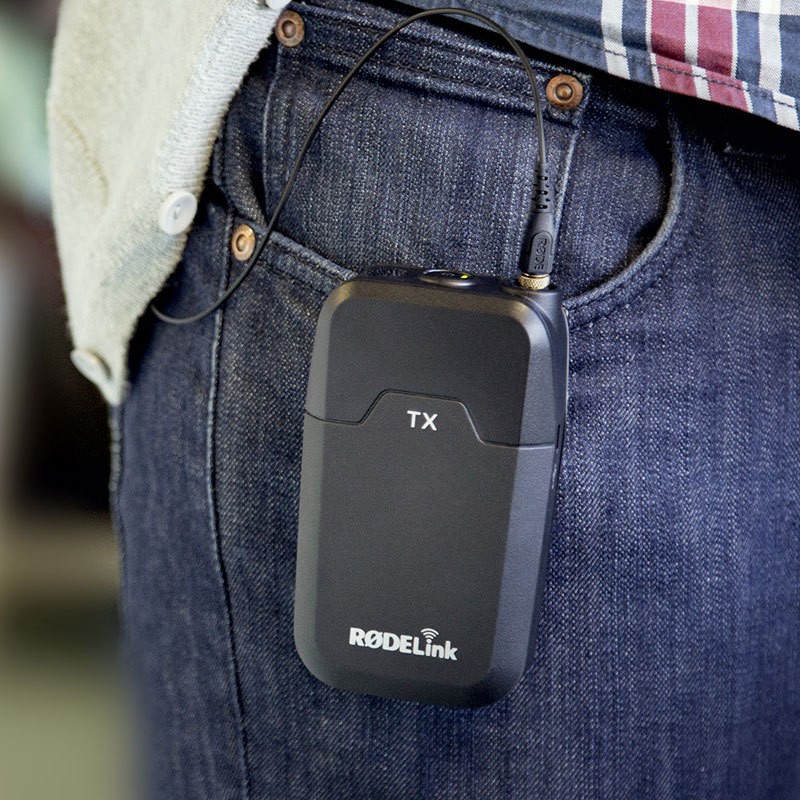

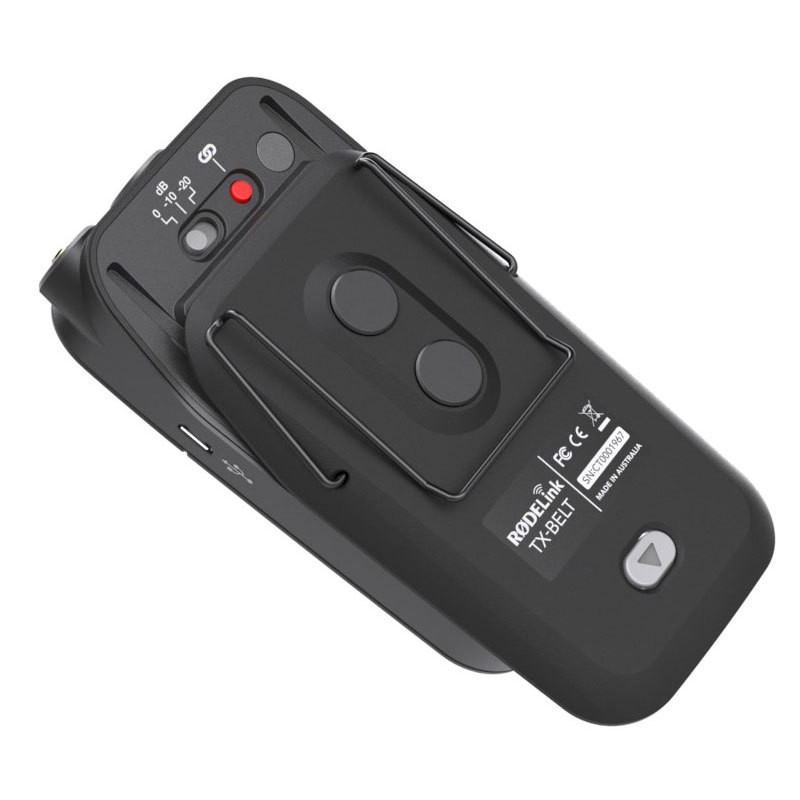

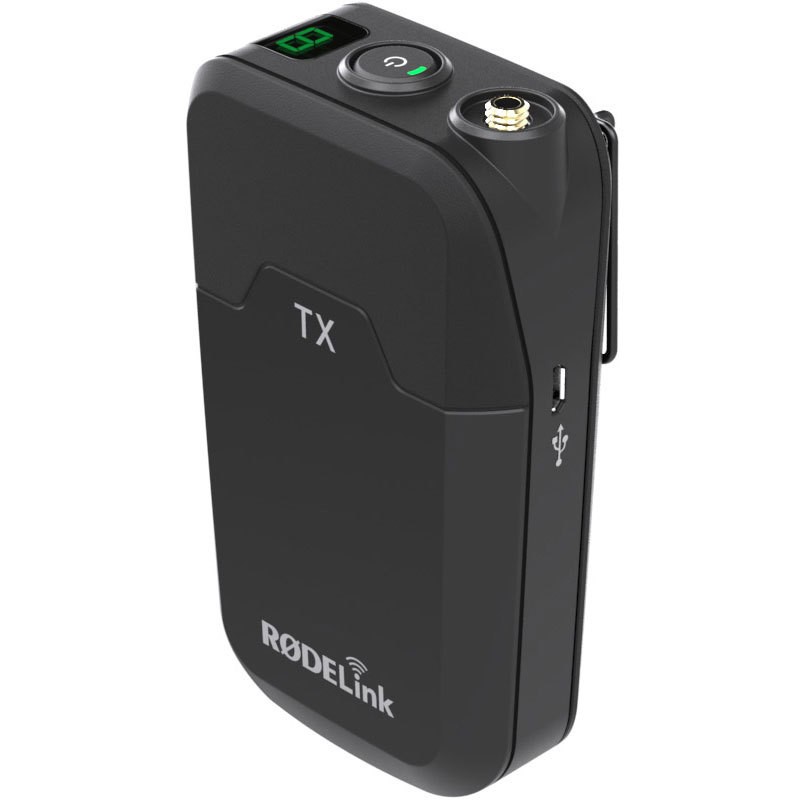

TRANSMITTER (TX-BELT)
| Power source | 2 X AA Battery Or MicroUSB |
| Antenna | Internal |
| Input connection | 3.5mm TRS Locking Jack Socket |
| Input impedance | 10kΩ |
| Dimensions | 111mm X 65mm X 40mm |
| Weight | 190gm |
LAVALIER
| Acoustic Principle | Pressure Gradient |
| Active Electronics | JFET impedance converter |
| Capsule | 0.10" |
| Address Type | End |
| Frequency Range | 60Hz - 18kHz |
| Output Impedance | 3000Ω |
| Maximum SPL | 110dB SPL (@ 1kHz, 1% THD into 1KΩ load) |
| Maximum Output Level | 189.0mV (@ 1kHz, 1% THD into 1KΩ load) |
| Sensitivity | -33.5dB re 1 Volt/Pascal (21.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz |
| Equivalent Noise Level (A-weighted) | 25dB-A |
| Weight | 1.00gm |
| Dimensions | 12.00mmH x 4.50mmW x 4.50mmD |
