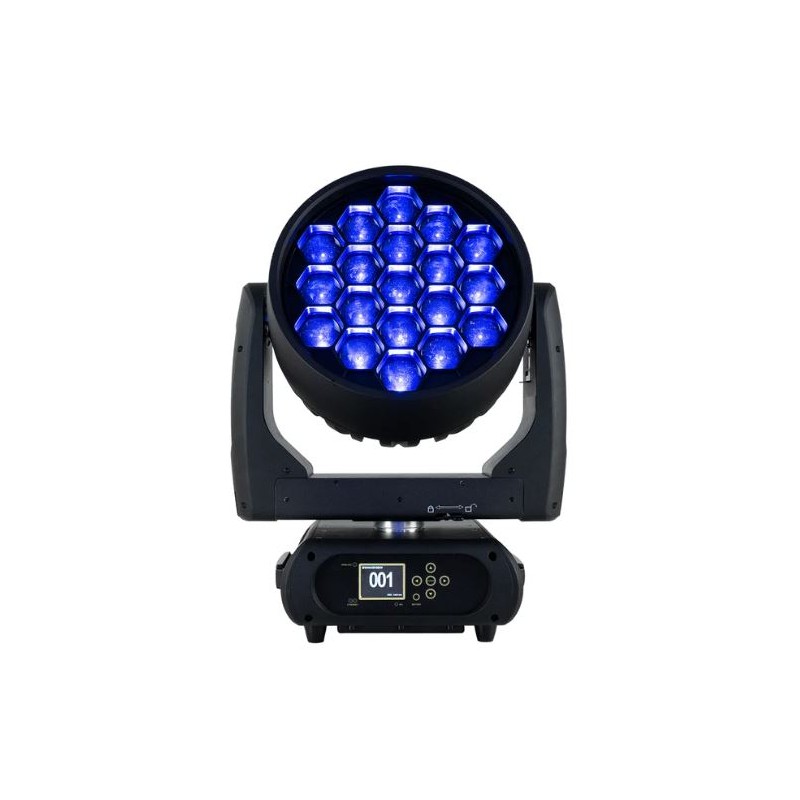

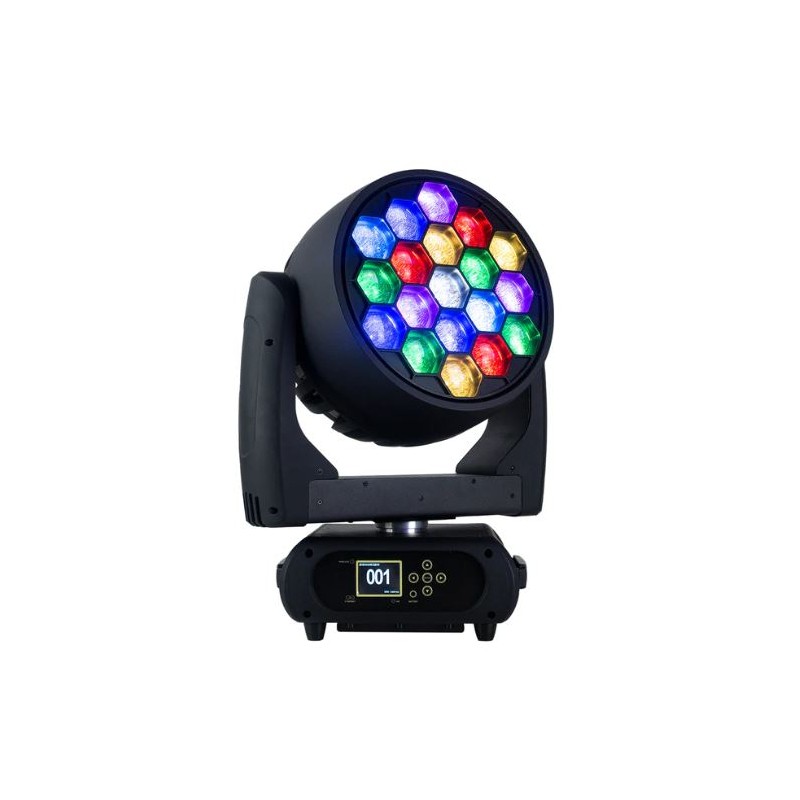

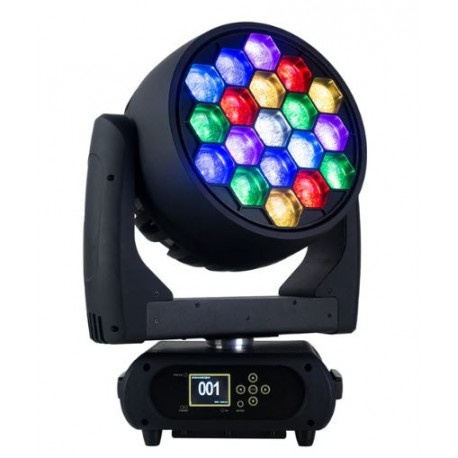

EVENT LIGHTING 19x 40 W RGBW LED Pixel Control Wash Zoom Head
M19W40RGBW
New
The M19W40RGBW uses 19x 20 W RGBW LEDs and features motorised zoom from 4~36°, pixel control, optional wireless DMX and 5-pin XLR plus ethernet interface.
Photometric
- Light Source: 19x Osram® 40 W RGBW LED
- Beam Angle: 4~36°
- Output: 13,000 lumen 99,943 lux @ 3 m RGBW at 4°, 5,740lux @ 3 m RGBW at 36°
- PWM: 1,200 Hz
- LED Lifespan: 60,000 hours
Effects
- Dimming: 0~100%
- Pixel Control: Yes
- Strobe: 0.5~26 Hz
- Zoom: Motorised 4 - 36°
Movement 8 / 16 – bit auto reposition
- Pan: 630° (1.56 sec) / 540° (1.3 sec)
- Tilt: 265° (0.85 sec)
Power
- Input Voltage: 100~240 V AC, 50/60 Hz, 615 W
- Connection: Neutrik® powerCON in
Control
- Operation Modes: DMX, auto, sound active, master/slave
- Control Protocol: DMX512, RDM, Art-Net (optional: W-DMX™)
- DMX Channels: 22 / 99 /19 /21
- Control Interface: 5-Pin XLR, Ethernet
- Display: 2.4″ colour LCD control panel with battery power.
- Software Upgrade via DMX: Yes
Housing
- Materials: ABS and steel, matte black finish
- Cooling: Multi-sensor thermostat-controlled variable speed fan
- IP rating: IP20
- Net Weight: 21 kg
- Rigging: 2x Omega Brackets with 1/4-turn Quick Locks
Accessories
- Road Case
