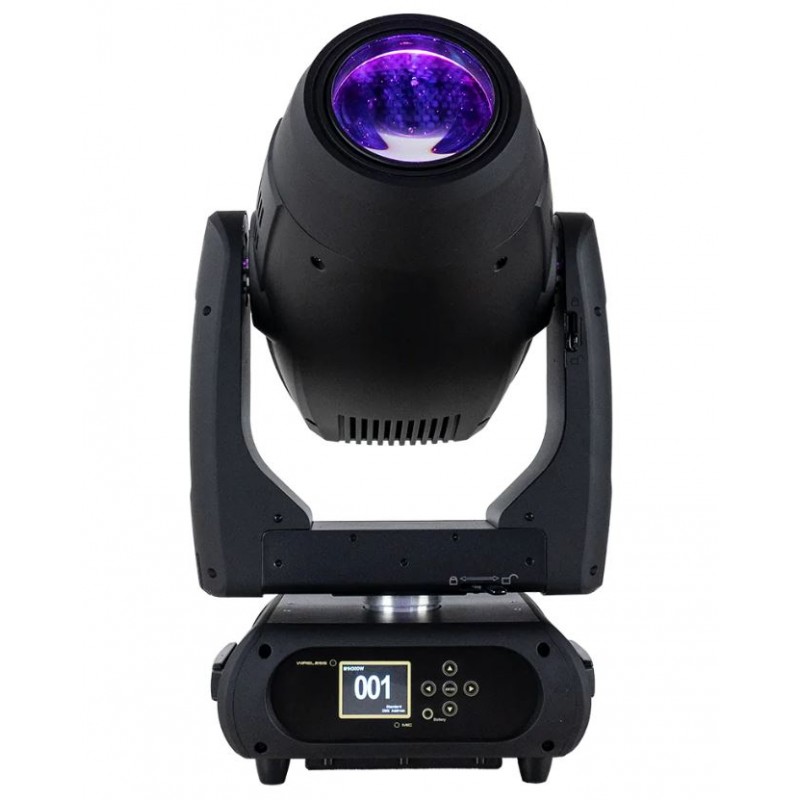

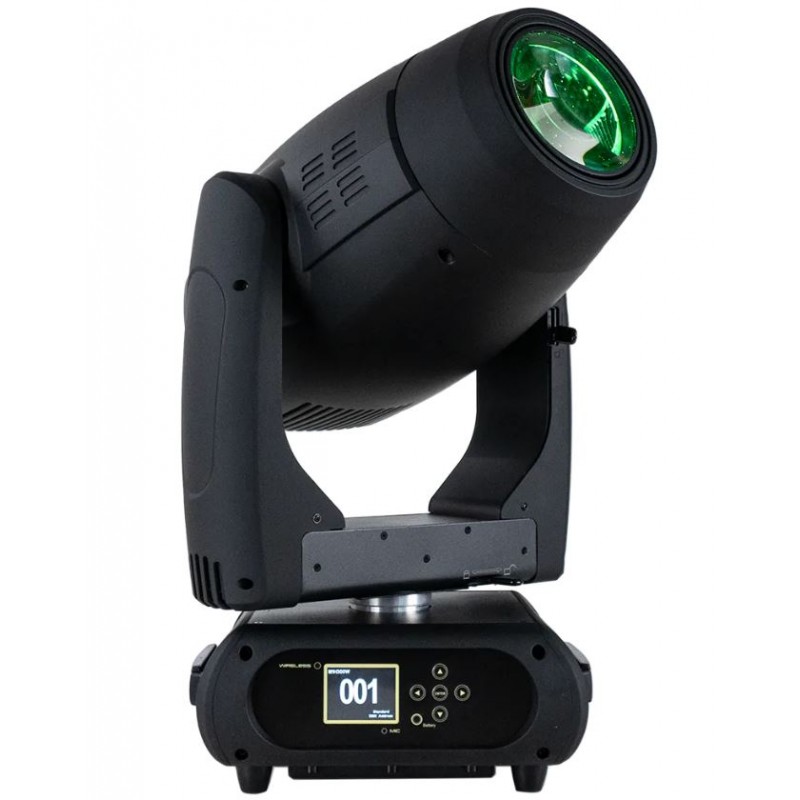

EVENT LIGHTING M1H420W - 420W LED Hybrid Moving Head with CMY, CTO and Zoom
M1H420W
New
The M1H420W is a punchy hybrid mover with a 3-facet prism and frost, iris, an 9-colour wheel, fixed and interchangeable rotating gobo wheels and beam angle of 5~50°.
Photometrics
- Light Source: 420 W White LED Module, 6,500 K
- Beam Angle: 5°~50°
- Output: 20,050 lumen, 110,000 lux on @ 2.5m @5°
- PWM: 1, 200Hz
- LED Lifespan: 20,000 hours
Colour
- Linear CMY & CTO
- 8 Colours + Open
Gobos
- Fixed: 6 + Open Fixed Gobo Wheel
- Rotating: 7 + Open Interchangeable Rotating Gobo Wheel (Outside Ø27mm, Inside Ø20mm).
Effects
- Dimming: 0~100%
- Strobe: 0.5~26 Hz
- Focus: Motorised
- Prism: 3-facet
- Frost: Yes
- Iris: Yes
- Zoom: Motorised 5° to 50°
Movement 8 / 16 bit Auto Reposition
- Pan: 630°( 4.4 sec) or 540°( 3.9 sec)
- Tilt: 233°(2.3 sec)
Power
- Input Voltage: 100~240 V AC, 50/60 Hz, 590 W
- Connection: Neutrik® powerCON in
Control
- Operational Modes: DMX, auto, sound active, master/slave
- Control Protocol: DMX512, RDM (optional: W-DMX™)
- DMX Channels: 28 / 29 / 19 / 21
- Interface: 3-pin XLR, 5-pin XLR
- Display: 2.4″ colour LCD control panel with battery power.
- Software Upgrade via DMX: Yes
Housing
- Materials: ABS & Steel, matte black finish
- Cooling: Multi sensor thermostat controlled variable speed fan
- IP rating: IP20
- Net Weight: 25 kg
- Rigging: 2x omega brackets with 1/4-turn quick locks
