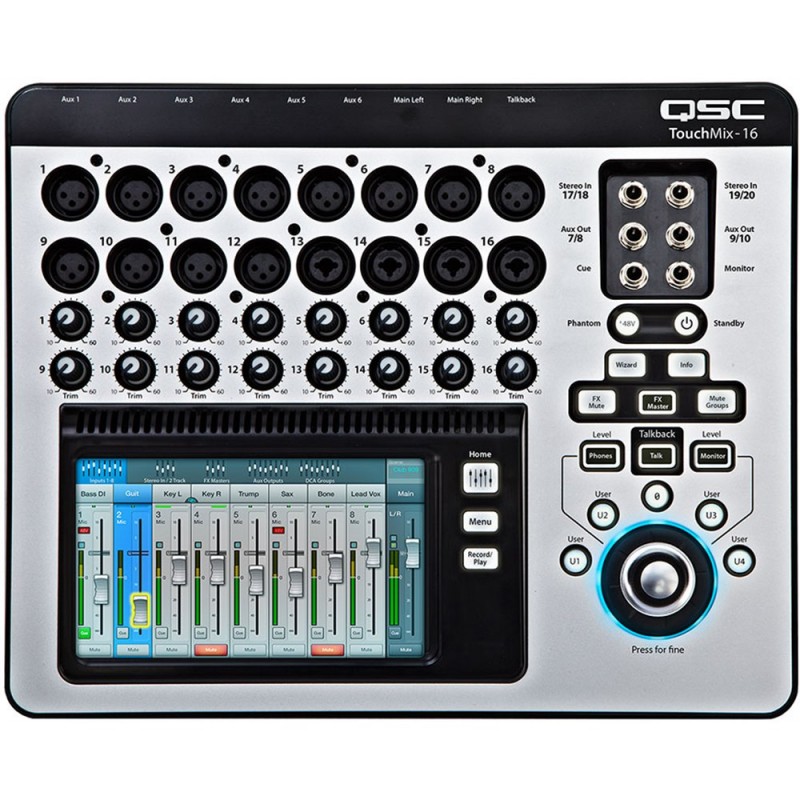

QSC Touchmix 16
QSC-TMIX16
New
*PLEASE CONTACT US FOR ETA*
16-Channel Touchscreen Compact Digital Mixer Packed with Features- 16 XLR plus 2 TRS inputs with Touchscreen plus tactile controls and remote operation
- 4-band full parametric EQ, variable high-pass and low-pass filters on all input channels
- Onboard effects, presets, scene selection & multi-track recording
*PLEASE CONTACT US FOR ETA*
QSC TouchMix compact digital mixers are designed for musicians, production professionals and live performance venues that need the power and capability of a large “concert” mixing console in a compact, affordable and easy to use form.
The QSC TouchMix-16 Compact Digital Mixer is a 20-input digital mixer with 16 mic pre, and can be controlled by its integrated touchscreen, tactile controls, or wirelessly via an iPad connected to the same wireless network.
The mixer features 16 class-A mic pre-amps, 32-bit floating point processing and 24-bit AD & DA convertors, plus a DSP-based 4-band parametric EQ with variable high and low-pass filters, a gate, and compressor on each input channel and onboard effects including reverb, echo, delay, and chorus effects in addition to assignable pitch correction. The latest firmware update adds key features from the Touchmix 30 including RTA, anti-feedback wizard, room tuning wizard and many more!
QSC TouchMix-16 is also capable of multi-track recording with sampling frequencies up to 48kHz to an optional external USB hard drive. A USB Wi-Fi adapter and carrying case are included.
Features:
- 20 Full Function Inputs: 12 Mic, 4 Mic/Line (XLR/TRS Combo), 2 Stereo Line (TRS), Talkback (XLR), USB 2-track

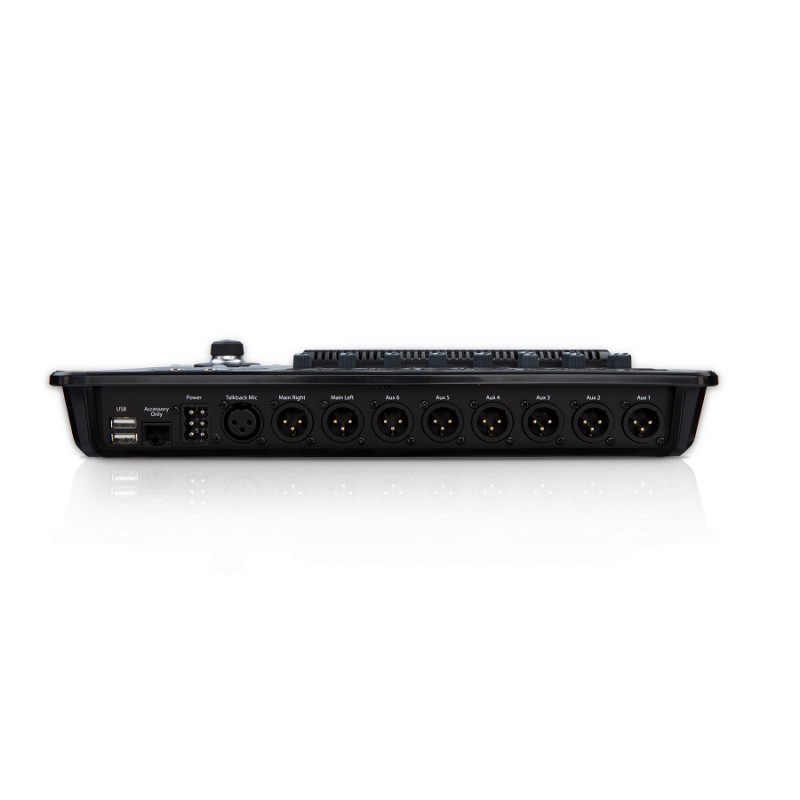

- Outputs: 6 Aux (XLR), 2 Stereo (TRS), Main R/L (XLR), Cue (TRS), Monitor (TRS)TRS Aux outs drive wired In Ear Monitors (IEM) directly
- 4-band full parametric EQ, variable high-pass and low-pass filters on all input channels
- Gate and compressor on all input channels
- 4 stereo DSP effects plus a pitch corrector
- 1/3 octave graphic equalization, limiters, delay and notch filters on Main and Aux outputs
- 8 DCA and 8 Mute groups
- Color, capacitive touchscreen graphical user interface combined with hardware controls for fast operation
- Direct to hard-drive recording and playback of multi-track wave files. Capable of recording all input channels plus a user-selected stereo output pair
- Remote control via mobile devices. Wi-Fi interface included.
